3 in 1 Square - Stair Stringer Layout Tool

3 in 1 Square - Stair Stringer Layout Tool

If ordered today, this should ship on or before:
- Help Need it sooner?

$59.95 ea

Qty:

Quick Overview

The 3 in 1 Square is a new tool that takes the guess work out of constructing stair stringers and roof rafters. The 3 in 1 Square provides a better visual aid then the framing square and makes it easier to understand the concept of measuring and cutting stair stringers and rafters. Simply set the dimensions for the rise and run on the 3 in 1 Square one time, and use it to mark all of your stringers and rafters. Shipping is included in the price of The 3 in 1 Square stringer jig.

Shipping costs are included for the lower 48 contiguous United States - Alaska & Hawaii are billed at the standard ground shipping rates - duties, taxes, other export fees may apply for shipments foreign countries including Canada.

More Views

Details

INSTRUCTIONS FOR STAIR STRINGERS

To build stair stringers, you need to get an exact measurement from the bottom floor to the top floor.
Suppose the distance from bottom floor to top floor including the thickness of the second floor is 108". Divide 108" by 7 (7 is an average height of a step) and you will get 15.428, that means you will need 15 risers. Now, divide 108 by 15 and you will get around 7" or the exact height each riser needs to be. The treads need to be about 10"
The amount of treads will be one less than the amount of risers, so to find the total run or length of the stairs, you multiply 10 by 14 and that equates to 140"

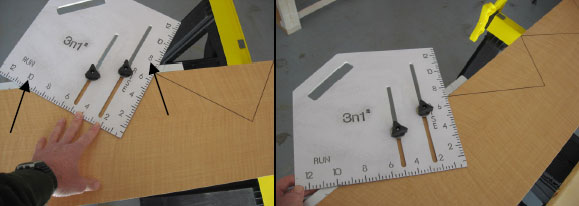

Now that you know the stringers will need to be cut with a 10" tread and a 7" riser, simply set the 3n1 to 7 on the Rise and 10 on the Run (see below), tighten knobs and mark all of the stringers. Unlike the framing square, the 3n1 allows you set the dimensions one time and mark all of your stringers without having to remeasure or readjust.

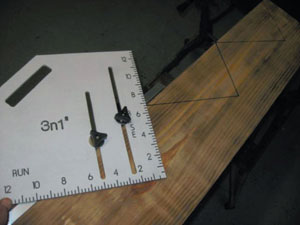

Mark the 2 x 12 and remember to deduct the tread thickness from the bottom riser.

INSTRUCTIONS FOR RAFTERS

Constructing rafters for a 12' X16' building with a 5/12 pitch on the roof. 5/12 means for every 5' of rise you have 12' of run. With a 5/12 pitch your rafter length would be 6'6" from the top plumb cut to the outside wall plumb mark which is also where the birds mouth will be cut. If you want an overhang for the rafters of 12", you will make the rafters 6'6" plus 12"
To mark the rafters, adjust the 3n12 to 5 on the Rise and 12 on the Run and make the top plumb mark (peak of the roof) measure down 6'6" and make a mark for the outside wall and measure down 12" and mark for the overhang. If using a ridge board, deduct 3/4" from the 6'6" length to allow for the ridge board. This would make it 6'51/4"from the top plumb mark to the outside wall mark
Turn the 3n1 2 around 180 0 to make the mark for the birds mouth

Additional Information

Unit Of Measure	ea
SKU	3in1-Square
Quickship Item	Yes
Standard Dimensions	View standard tread & riser dimensions
